IP66 Outdoor Fixed LED Display Waterproof Energy Saving LED Display 12000 Nits
  • name

IP66 Outdoor Fixed LED Display Waterproof Energy Saving LED Display 12000 Nits

Brand Name: TuringLED
MOQ: 10 PCS
Packaging Details: Plywood case
Payment Terms: 100% TT
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,RoHS,FCC
Name:
Outdoor Fixed LED Display
IN/OUT:
Outdoor
Target Market:
Outdoor Billboard
Maintenance:
All Parts Front Access + Back Access
Visual Features:
Upto 12000 Nits
Stability Features:
IP65
Energy Saving:
Energy-saving Common Cathode Technology
Highlight:
Die-casting Aluminium Module Back Shell
Highlight:

IP66 Outdoor Fixed LED Display

,

Outdoor Fixed LED Display Waterproof

,

Energy Saving LED Display 12000 Nits

Product Description
Aluminum LED Screen with Common Cathode Energy-Saving, IP66 Waterproof, and 12,000 Nits Brightness for Outdoor Fixed LED Display

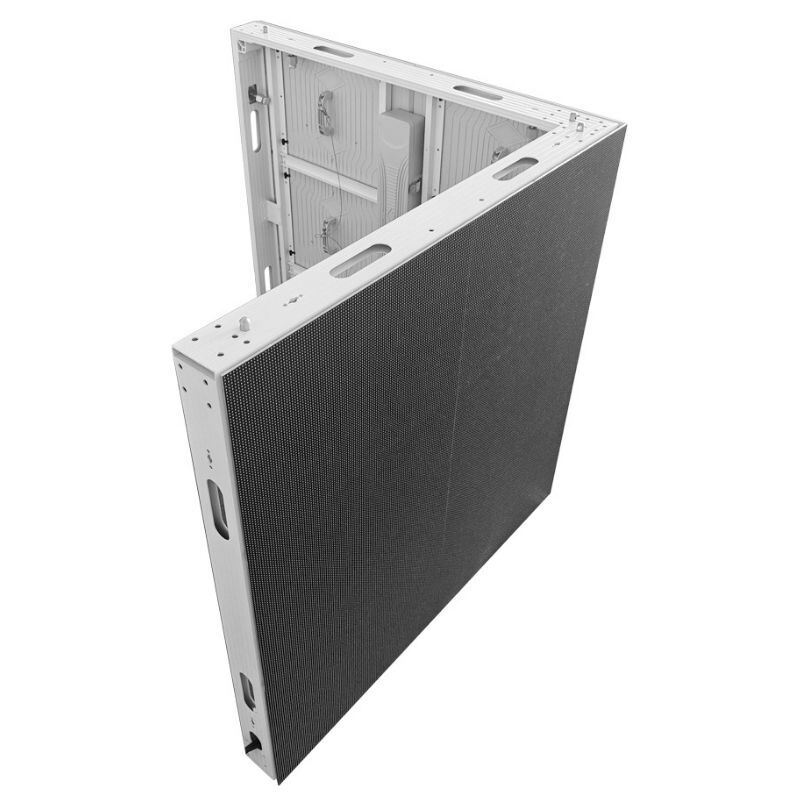

Outdoor Common Cathode Energy-Saving Aluminum LED Display
IP66 Outdoor Fixed LED Display Waterproof Energy Saving LED Display 12000 Nits 0 IP66 Outdoor Fixed LED Display Waterproof Energy Saving LED Display 12000 Nits 1
Product Overview
The Outdoor Common Cathode Energy-Saving Aluminum LED Display is engineered for long-term outdoor operation under extreme environmental conditions. By combining common cathode driving technology with a high-efficiency aluminum cabinet, this display delivers outstanding heat dissipation, significantly reduced power consumption, and exceptional system stability. It is an ideal solution for outdoor advertising, stadiums, landmarks, transportation hubs, and other high-brightness, high-reliability applications.
Key Advantages
Common Cathode Technology – Up to 40% Energy Saving
Unlike traditional common anode LED displays, this system adopts common cathode driving architecture, allowing independent voltage control for red, green, and blue LEDs.
  • Reduces unnecessary power loss
  • Minimizes heat generation at the source
  • Up to 40% lower power consumption compared to conventional outdoor LED displays
  • Lower operating cost and longer component lifespan
High-Efficiency Aluminum Cabinet – Fast Heat Dissipation
The full aluminum cabinet structure acts as a natural heat sink, enabling rapid and uniform heat transfer.
  • Excellent thermal conductivity
  • No need for additional cooling fans in most applications
  • Lower internal temperature improves LED and driver IC reliability
  • Suitable for high-temperature and direct-sunlight environments
High Stability for 24/7 Outdoor Operation
Designed for continuous operation in harsh outdoor conditions:
  • Stable performance in extreme heat, cold, wind, and heavy rain
  • Reduced thermal stress on electronic components
  • Long-term color consistency and brightness uniformity
  • Ideal for 7*24-hour non-stop operation
Professional Outdoor Waterproof Protection
The display is engineered with comprehensive outdoor protection measures:
  • IP-rated waterproof design for both front and rear
  • Sealed modules and connectors
  • Resistant to rain, humidity, dust, and pollution
  • Suitable for permanent outdoor installation
Ultra-High Brightness Option – Up to 12,000 Nits
To ensure excellent visibility even under strong direct sunlight, a 12,000 nits high-brightness configuration is available.
  • Clear image display in daylight and harsh lighting conditions
  • Ideal for roadside advertising, stadium screens, and high-exposure locations
  • High brightness combined with common cathode design ensures efficiency without excessive heat
Typical Applications
Outdoor advertising billboards
Stadium and sports venues
Transportation hubs (airports, railway stations, highways)
City landmarks and building façades
Commercial and public information displays
Technical Specifications
Item P4.444
Pixel Composition (SMD) 1921
Pixel Pitch (mm) 4.444
Module Resolution (W*H) 108*72
Module Size (mm) 480*320*16
Module Weight (kg) 2
Module Qty/Cabinet (W*H) 2*3
Cabinet Resolution (W*H) 216*216
Cabinet Size (mm) 960*960*92
Cabinet Area (㎡) 0.92
Cabinet Weight (kg/cabinet) 24.5
Cabinet Material Aluminium
Cabinet Density (dot/m²) 22500
IP Rating IP66
White Balance Brightness (nits) ≥5500
Color Processor (bit) 14~16
Color Temperature (K) 6000-12000
Visual Angle (H/V) 140°/ 120°
Luminous point centre deviation ＜3%
Luminance uniformity ≥97%
Chromaticity uniformity Within ±0.003 (Cx, Cy)
Contrast Ratio ≥15000:1
The Max Power Consumption (W/㎡) 550
Average Power Consumption (W/㎡) 186
Input Voltage AC100~240V
Frequency (Hz) 50&60
IC Driving(s) 1/9
Refreshing Ratio (Hz) 3840 or 7680 Hz
Maintenance Method Front and Rear
Lifespan (hrs) 100,000
Work Temperature/Humidity -40℃-80℃/10%RH-98%RH
Storage Temperature/Humidity -20℃-60℃/10%RH-98%RH
With its common cathode energy-saving design, fast heat dissipation aluminum structure, high stability, outdoor waterproof reliability, and optional 12,000 nits ultra-high brightness, this outdoor LED display offers a future-proof solution for customers who demand performance, durability, and reduced operating costs.
