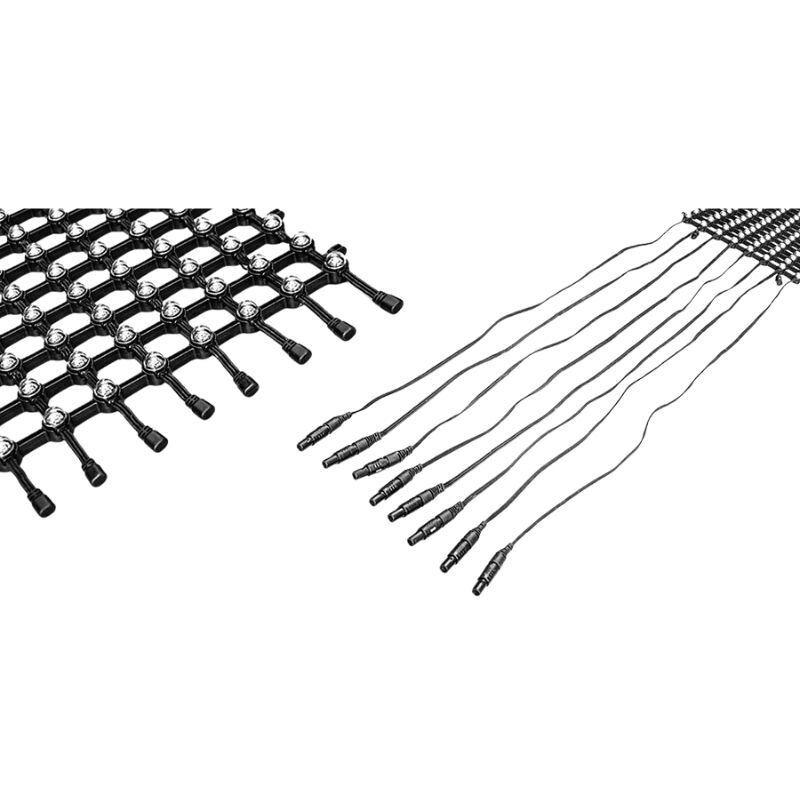

High-performance outdoor LED display solution designed for media facade applications, offering excellent visibility, weather resistance, and energy efficiency.

Technical Specifications

Specification	M1-37	M1-40	M1-56
Pixel Pitch	37.5mm	40mm	56.25mm
Pixel Configuration	1xSMD3535	1xSMD3535	1xSMD3535
Panel Size	300x4800mm	320x5120mm	450x7200mm
Panel Resolution	8x128 pixels	8x128 pixels	8x128 pixels
Panel Weight	4.2kg/sq.m	3.5kg/sq.m	2.4kg/sq.m
Brightness	17000 nits	1500 nits	700 nits
IP Rating (Front/Rear)	IP65	IP65	IP65
Refresh Rate	1000 Hz	1000 Hz	1000 Hz
Transparency Rate	63%	66%	77%
Scan Mode	Static	Static	Static
Max Power Consumption	360W/sq.m	320W/sq.m	160W/sq.m
Color Processing	16bit	16bit	16bit
Viewing Angle (H/V)	140°/110°	140°/110°	140°/110°
Operating Temperature	-20～50°C	-20～50°C	-20～50°C
Main Power Source	AC 100～240V; 50/60Hz	AC 100～240V; 50/60Hz	AC 100～240V; 50/60Hz
Input Voltage	7.5V DC	7.5V DC	7.5V DC
Humidity	10～90%RH	10～90%RH	10～90%RH
Life Time	100,000 Hours	100,000 Hours	100,000 Hours
Certification	CE, RoHS	CE, RoHS	CE, RoHS

Key Features

High brightness levels suitable for outdoor daylight viewing
IP65 rated for complete weather and dust protection
High transparency rates for architectural integration
Wide operating temperature range for various climates
Long operational lifespan of 100,000 hours
International certifications including CE and RoHS
Multiple pixel pitch options for different viewing distances
