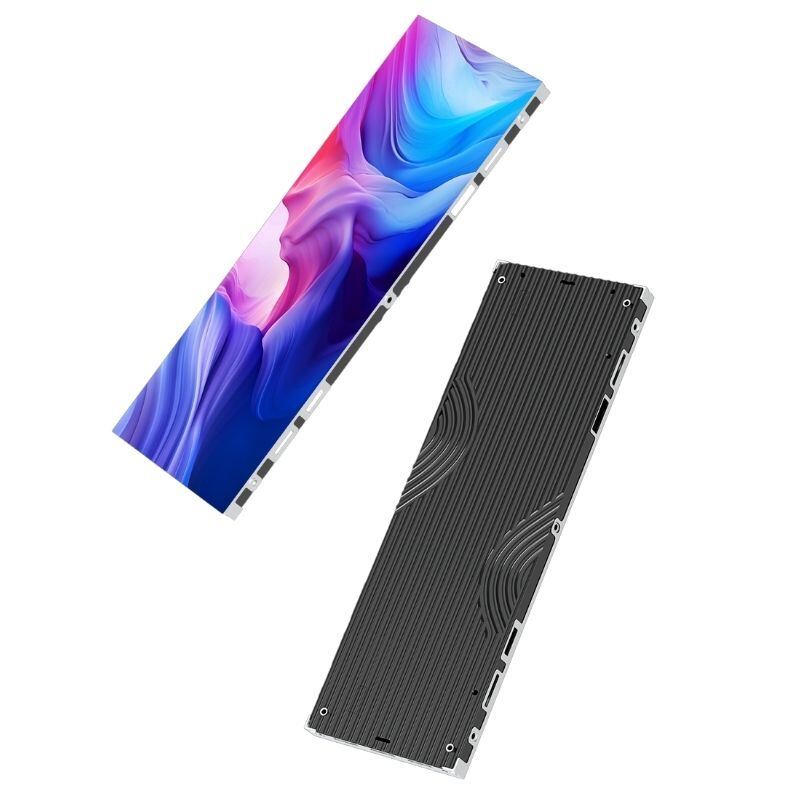

Ultra-Thin Design: Only 33mm thickness for seamless wall integration
Lightweight Construction: Multiple cabinet sizes with optimized weight distribution
Front Access Maintenance: Easy servicing from the front without rear access requirements
Rotatable LED Modules: 90° rotation capability while maintaining optimal viewing angles
Corner Installation Support: Flexible mounting options for corner applications

Weight Specifications

Cabinet Weights:

1000mm × 500mm: 10.5 kg
1000mm × 250mm: 5.6 kg
750mm × 250mm: 4 kg
500mm × 250mm: 3 kg

Technical Specifications

Parameter	P1.25	P1.5625	P1.95	P2.5	P2.604	P2.976	P3.91
LED Type	SMD1010(GOB)	SMD1212(GOB)	SMD1515	SMD1515	SMD1515	SMD1515	SMD2020
Physical Density (Dot/sqm)	640,000	409,600	262,144	160,000	147,456	112,896	65,536
Module Resolution	200×200	160×160	128×128	100×100	96×96	84×84	64×64
Module Dimension (mm)	250×250	250×250	250×250	250×250	250×250	250×250	250×250
A Cabinet Size (mm)	1000×500×33	1000×500×33	1000×500×33	1000×500×33	1000×500×33	1000×500×33	1000×500×33
B Cabinet Size (mm)	1000×250×33	1000×250×33	1000×250×33	1000×250×33	1000×250×33	1000×250×33	1000×250×33
C Cabinet Size (mm)	750×250×33	750×250×33	750×250×33	750×250×33	750×250×33	750×250×33	750×250×33
D Cabinet Size (mm)	500×250×33	500×250×33	500×250×33	500×250×33	500×250×33	500×250×33	500×250×33
Module Quantity (W×H)	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1	4×2/4×1/3×1/2×1
A Cabinet Resolution (Dots)	800×400	640×320	512×256	400×200	384×192	336×168	256×128
B Cabinet Resolution (Dots)	800×200	640×160	512×128	400×100	384×96	336×84	256×64
C Cabinet Resolution (Dots)	600×200	480×160	384×128	300×100	288×96	252×84	192×64
D Cabinet Resolution (Dots)	400×200	320×160	256×128	200×100	192×96	168×84	128×64
Maintenance	Front access	Front access	Front access	Front access	Front access	Front access	Front access
Calibration	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Brightness (Nits)	600	600	800	800	800	800	800
Color Temperature (K)	3200-9300 Optional	3200-9300 Optional	3200-9300 Optional	3200-9300 Optional	3200-9300 Optional	3200-9300 Optional	3200-9300 Optional
Viewing Angle (V/H)	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°	160°/160°
Brightness/Color Uniformity	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%	≥97%
Contrast Rate	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Frame Frequency	50/60	50/60	50/60	50/60	50/60	50/60	50/60
Drive Mode	1/50 Scan	1/40 Scan	1/32 Scan	1/25 Scan	1/32 Scan	1/28 Scan	1/16 Scan
Gray Level (Bit)	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional	14/16 Optional
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840	3840
Max Power Consumption (W/sqm)	350	350	350	350	350	350	350
Avg Power Consumption (W/sqm)	100-200	100-200	100-200	100-200	100-200	100-200	100-200
Protection Level	IP31	IP31	IP31	IP31	IP31	IP31	IP31
Power Input	AC90-264V	AC90-264V	AC90-264V	AC90-264V	AC90-264V	AC90-264V	AC90-264V
Working Temperature/Humidity	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%
Storage Temperature/Humidity	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%	-20~60°C/10%~85%
Certifications Optional	CCC/CE/RoHS/FCC/CB/TUV/IEC	CCC/CE/RoHS/FCC/CB/TUV/IEC	CCC/CE/RoHS/FCC/CB/TUV/IEC	CCC/CE/RoHS/FCC/CB/TUV/IEC	CCC/CE/RoHS/FCC/CB/TUV/IEC	CCC/CE/RoHS/FCC/CB/TUV/IEC	CCC/CE/RoHS/FCC/CB/TUV/IEC
