| Brand Name: | TuringLED |
| Model Number: | FBslim1.9 |
| MOQ: | 10 Panels |
| Payment Terms: | 100% TT |
The FBslim Series is a unique creative solution engineered specifically for modern exhibition stands. Designed for seamless integration with Euro-standard 4040 Aluminum Profiles, it simplifies complex installations into a fast, enjoyable process.
![]()
Pixel Pitch Options: 1.9mm, 2.6mm, 2.9mm, 3.9mm
Brightness Range: 600 to 2000 nits (Crystal clear under hall lighting)
Cabinet Dimensions: 500mm x 500mm
Target Markets: High-end Exhibition Stands, Luxury Retail, Creative Rental![]()

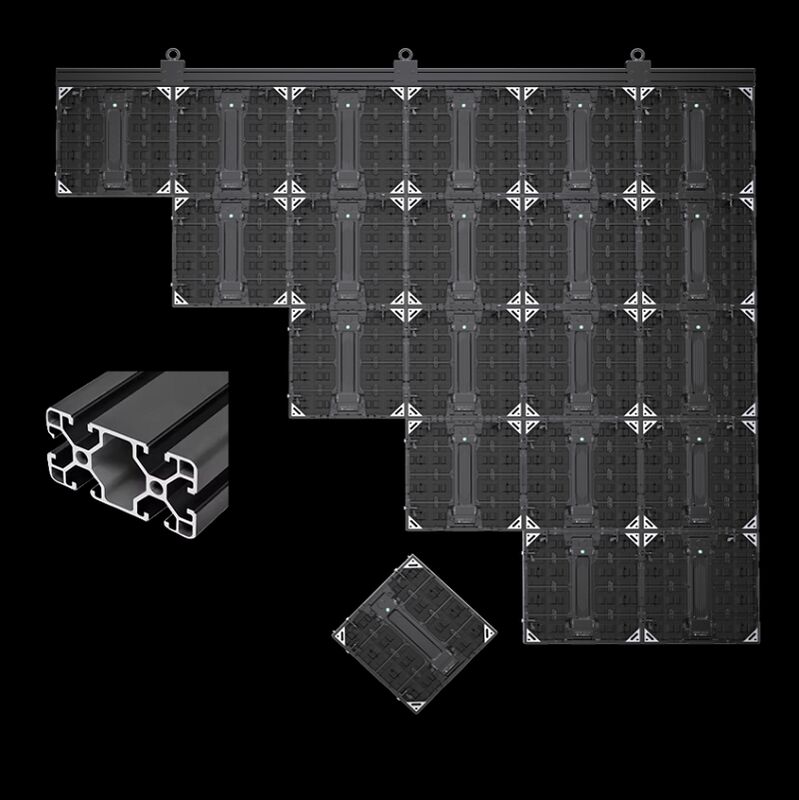

Seamless Alu Profile 4040 Integration
Fully compatible with Euro-standard aluminum profiles. The FBslim locking system integrates directly into the 4040 profile grooves—no additional brackets required.![]()
Direct Front-Side Fixing to Wood
The cabinet features front-access screw holes, allowing it to be mounted directly onto wooden exhibition walls and panels—perfect for custom booth designs.![]()
Front & Rear Maintenance
Full serviceability from both sides ensures easy access even in tight booth corners with limited rear clearance.
![]()
Ultra-Lightweight & Slim Design
Weighing only 5.7 kg (12.57 lbs) per panel, it is easy to handle for a single person, significantly reducing labor costs and onsite setup time. 4cm Depth only
Broadcast-Grade Visuals
With a 7,680Hz Refresh Rate, your booth will look perfect in professional photography and live video feeds without any flicker.
| Feature | Indoor Standard (1.9mm) | High-Bright Edition (1.9mm) |
|---|---|---|
| Pixel Pitch | 1.95mm | 1.95mm |
| Physical Density | 262,144 pixels/m2 | 262,144 pixels/m2 |
| Module Dimensions | 500 x 125mm (19.69 x 4.92") | 500 x 125mm (19.69 x 4.92") |
| Cabinet Dimensions | 500 x 500mm (19.69 x 19.69") | 500 x 500mm (19.69 x 19.69") |
| Cabinet Weight | 5.7 kg (12.57 lbs) | 5.7 kg (12.57 lbs) |
| Brightness | 800 nits | 1300 nits |
| Refresh Rate | 7,680Hz | 7,680Hz |
| Viewing Angle (H/V) | 160° / 160° | 160° / 160° |
| Max Power Consumption | 180 W/panel | 180 W/panel |
| Avg Power Consumption | 60 W/panel | 60 W/panel |
| Control System | Novastar, Colorlight | Novastar, Colorlight, Brompton |
| Certifications | CE, FCC, ETL, RoHS | CE, FCC, ETL, RoHS |
